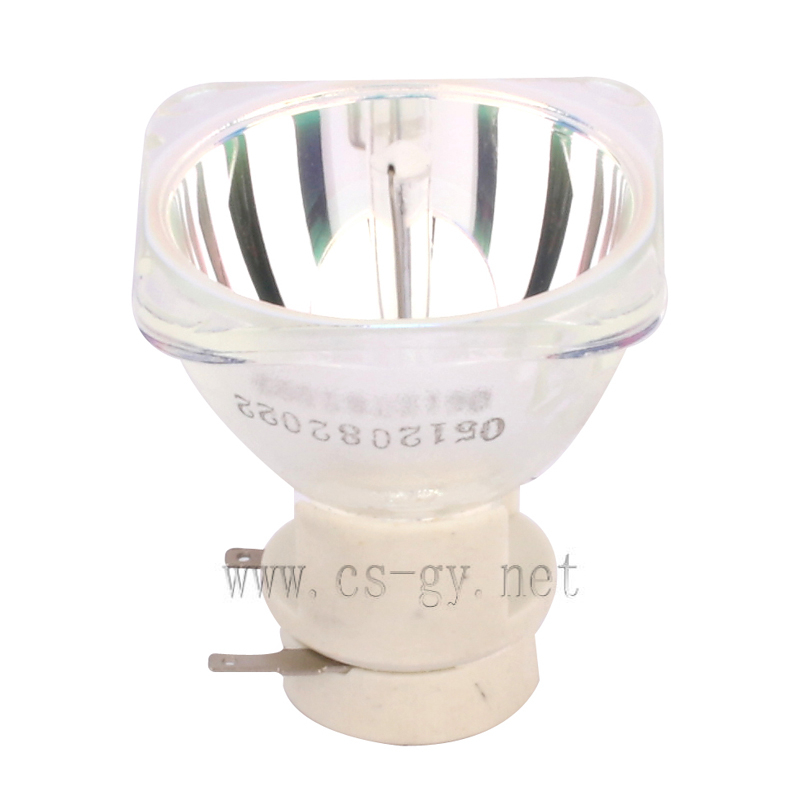

RSD 260W R10
ROCCER
| Model No | Power (W) | Arc Length (mm) | Luminous Flux (lm) | Color Temperature (K) | Color Rendering Index (cri) | Allowed Max Temperature (℃) | Average life (hrs) | Operating Ballast |
| RSD 132W R2 | 132 | 1.2 | 5150 | 8000 | 75 | 350 | 2000 | 132Dn/TO 1 |
| RSD 150W R3 | 150 | 1.2 | 6000 | 8000 | 75 | 350 | 2000 | 150Dn/TO 2 |
| RSD 200W R5 | 200 | 1.2 | 7800 | 8000 | 75 | 350 | 2000 | 190Dn/TO 1 |
| RSD 230W R7 | 230 | 1.3 | 11000 | 7500 | 75 | 350 | 1500 | PT VIP 03 MID |
| RSD 260W R10 | 260 | 1.3 | 12000 | 7500 | 75 | 350 | 1500 | PT VIP 03 TOP |
| RSD 280W R12 | 280 | 1.3 | 12500 | 7500 | 75 | 350 | 1500 | PT VIP 03 TOP |
| RSD 300W R15 | 300 | 1.3 | 13500 | 7500 | 75 | 350 | 1500 | 300c B/B01 |
| RSD 330W R16 | 330 | 1.3 | 16000 | 7500 | 75 | 350 | 1500 | 330c B/B01 |
| RSD 350W R17 | 350 | 1.3 | 18000 | 7500 | 75 | 350 | 1500 | 350c B/B01 |
| Model No | Power (W) | Arc Length (mm) | Luminous Flux (lm) | Color Temperature (K) | Color Rendering Index (cri) | Allowed Max Temperature (℃) | Average life (hrs) | Operating Ballast |
| RSD 132W R2 | 132 | 1.2 | 5150 | 8000 | 75 | 350 | 2000 | 132Dn/TO 1 |
| RSD 150W R3 | 150 | 1.2 | 6000 | 8000 | 75 | 350 | 2000 | 150Dn/TO 2 |
| RSD 200W R5 | 200 | 1.2 | 7800 | 8000 | 75 | 350 | 2000 | 190Dn/TO 1 |
| RSD 230W R7 | 230 | 1.3 | 11000 | 7500 | 75 | 350 | 1500 | PT VIP 03 MID |
| RSD 260W R10 | 260 | 1.3 | 12000 | 7500 | 75 | 350 | 1500 | PT VIP 03 TOP |
| RSD 280W R12 | 280 | 1.3 | 12500 | 7500 | 75 | 350 | 1500 | PT VIP 03 TOP |
| RSD 300W R15 | 300 | 1.3 | 13500 | 7500 | 75 | 350 | 1500 | 300c B/B01 |
| RSD 330W R16 | 330 | 1.3 | 16000 | 7500 | 75 | 350 | 1500 | 330c B/B01 |
| RSD 350W R17 | 350 | 1.3 | 18000 | 7500 | 75 | 350 | 1500 | 350c B/B01 |
