UVC lamp G8T5,G15T8,G20T8,G25T8,G30T8,G40T8 Double-end two-pin aluminum G13 base T5 TUV T8 germicidal lamp for air purification surface disinfection

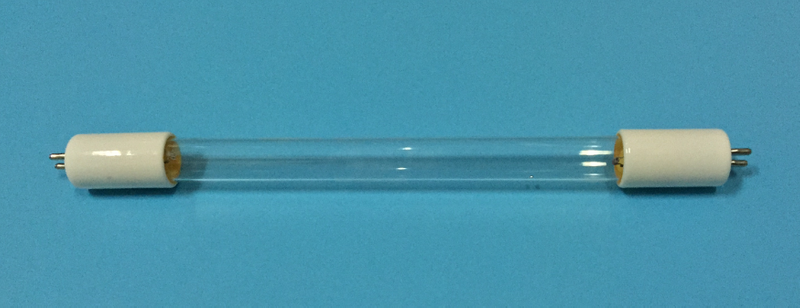

TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional
air disinfection units. TUV T8 lamps offer almost constant UV output over their
complete lifetime. Moreover, they have a long and reliable lifetime, which allows
maintenance to be planned for in advance.
Availability:
Quantity:

Main applications : Air disinfection systems in professional  applications such as universities, hospitals, jails  and laboratories • Upper air and whole room disinfection  equipment in hospitals, intensive care units  and surgery rooms • Areas with low maintenance and/or disruptive  costs • Fish ponds and process water units


Features: Short-wave UV radiation with a peak at  253.7 nm (UVC) for disinfection purposes Protective inside coating ensures constant UV  output over the complete lifetime of the lamp Long lifetime of 8,000 hours* High reliability with the lowest percentage  of lamps that fail prematurely in the market  (90% of all lamps still operate on full output  and quality after 5,000 hours*) Special lamp glass filters out the 185 nm  ozone-forming radiation


Benefits: Effective disinfection over the useful lifetime  of the lamp Maintenance can be planned in advance,  virtually eliminating the need for expensive  spot replacement of prematurely failed lamps High Output versions available for optimum  UVC output per lamp length, allowing for  reduction of system size Good environmental choice because of  lowest amount of mercury



                                        Double-end Two-pin Germicidal Lamp


Code
Tube diameter (mm)
Length (mm)
Power (W)
Voltage (V)
Current (mA)
UV intensity under 1m (um/cm2)
Life (hrs)
ZW10D15W-Z1149
19/25
331
10
103
1800
150
8000
ZW15D15W-Z1149
19/25
437
15
115
1800
400
8000
ZW20D15W-Z1149
19/25
589
20
127
1800
460
8000
ZW30D15W-Z1554
19/25
894
30
134
1800
630
8000
ZW40D15W-Z1554
19/25
1199
40
154
2100
750
8000
