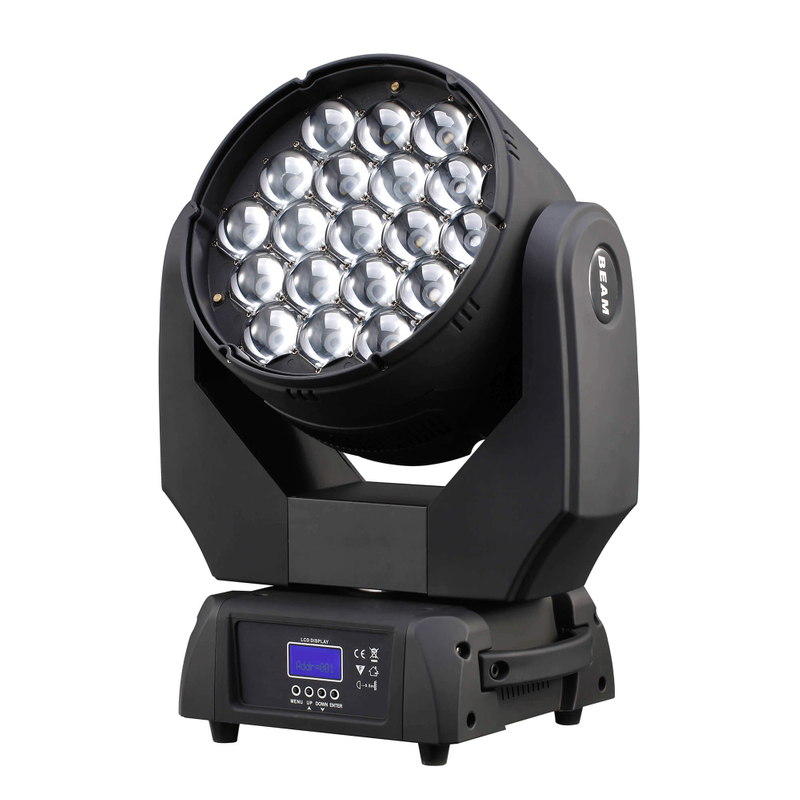

JT-D1915WS
JTL
| Power Supply: | AC 100-240V,50/60HZ | ||||||
| Power Consumption: | 300W | ||||||
| Light Source: | 19X15W 4 in 1 RGBW LED | ||||||
| Beam Angle: | 7°~60° | ||||||
| Dimmer: | 0-100% smooth linear dimming;two dimmer model in optional(delay or without delay) | ||||||
| Channel Control: | DMX | ||||||
| Channel: | 20/28CH | ||||||
| Software Upgrade: | Firmware update via DMX link | ||||||
| Pan/Tilt: | 540°/220° | ||||||
| Pan/Tilt Resolution: | 16 bit | ||||||
| Display: | LCD display | ||||||
| Data In/Out Socket: | 3-pin & 5-pin XLR sockets | ||||||
| Power Socket: | Powercon in/out | ||||||
| IP rating: | IP20 | ||||||
| Packing Dimension: | 410x330x490mm (17*13*20 Inch) | ||||||
| Net Weight: | 10KGS (22 Lb) | ||||||
| Gross Weight: | 12KGS (27 Lb) | ||||||
| Channel details | |||||||
| Channel 1 | Pan | Channel 11 | Green Led | ||||
| Channel 2 | Pan fine | Channel 12 | Blue Led | ||||
| Channel 3 | Tilt | Channel 13 | White Led | ||||
| Channel 4 | Tilt fine | Channel 14 | Rainbow | ||||
| Channel 5 | Speed Pan/Tilt | Channel 15 | Color Presets | ||||
| Channel 6 | Stobe | Channel 16 | Color Presets Dimmer | ||||
| Channel 7 | Dimmer Intensity | Channel 17 | Chase Patterns | ||||
| Channel 8 | Dimmer | Channel 18 | Chase Speed | ||||
| Channel 9 | Zoom | Channel 19 | Chase Fade | ||||
| Channel 10 | Red Led | Channel 20 | Lamp on/off,reset,internal programs | ||||
