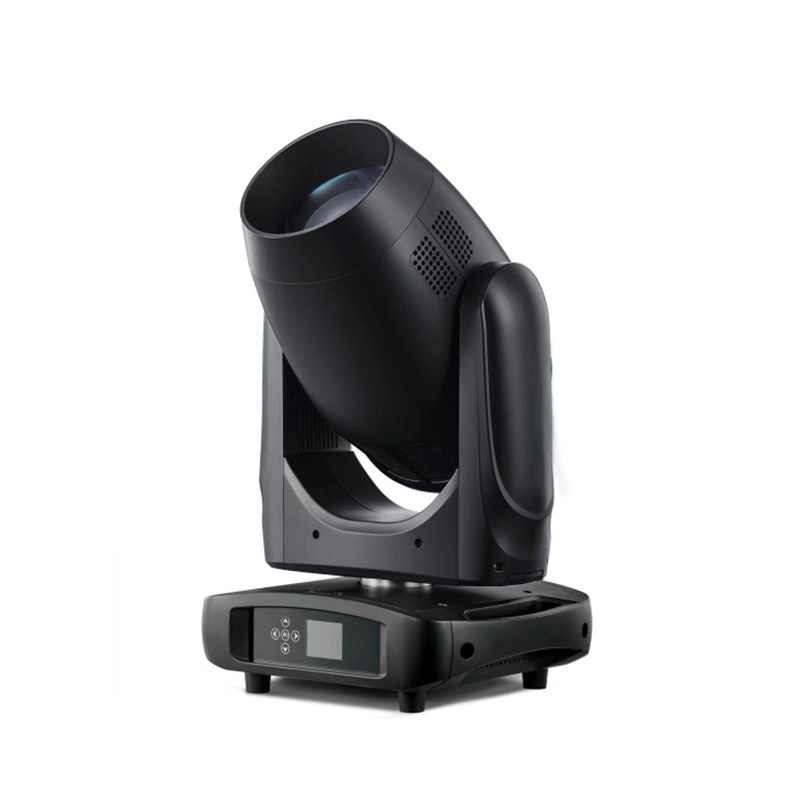

18R/20R Beam Spot Wash 3in1 380W BSW+CMY Stage Lights Moving Head Beam Light DMX 512

color:
3color wheels 12colors+ OpenWhite (Including: CTO 3500K & UV)
Full CMY Color Mixing
Prism: 1 8 prism,1 16 prism can be quickly cut in, cut out. It can be rotated in two directions with variable speed Two prisms can be stacked
Availability:
Quantity:
  • JT-R380BSW

  • Joyfirst




Light Source
Bulb Specification Philips MSD Silver 380W/2 LL
Color temperature 7800K
Rated life 4000 hours
color
3color wheels  12colors+ OpenWhite (Including CTO 3500K & UV)
Full CMY Color Mixing
GOBOs
GOBO Wheel 1 10Fixed + Open (1 Beam Reducers Beam Mode)
GOBO Wheel 2 7Rotating/Replaceable + Open (Size
Modular design for easy servicing and GOBO replacement
Effects
Prism 1 8 prism,1 16 prism can be quickly cut in, cut out. It can be rotated in two directions with variable speed Two prisms can be stacked
Atomization 1 single-sided high-transmission atomized lens
focusing DMX linear focus
Strobe Independent dual-chip. 0-15 times/second ultra-high-speed strobe. 0-100% linear dimming
Dimming Linear Dimming
Zoom Range 2 ~ 45-degrees
Control
Rotation angle 540° in the horizontal direction, 270° in the vertical direction, with automatic return function
Control Channels 21, 24 or 26
DMX Modes 2, RDM (Remote Device Management)
Control 3-pin
Full color display menu
Pan/Tilt Speed Fast to Slow
Electrical
Input voltage 110V~240V AC, 50/60Hz(Auto Sensing)
Daisy chain max 3 fixtures (@120V); 5 fixtures (@230V)
Power Draw 500W (4.71A @ 120V; 2.26A @ 220V)
cooling system
Equipped with 9 cooling fans. After the bubble is eliminated for one minute, the fan will enter the silent cooling mode
Other functions
Display lamp, bulb usage time. Remote control bulb switch function,Fault detection reminder, manual lock screen.
Shell and protection grade
Aluminum, high temperature/UV resistant engineering plastic, protection grade IP20
Dimensions/Weight
Dimensions (LxWxH) 14.8” x 11.6” x 23.5” / 382 x 299 x 603mm
Weight 45 lbs. / 20.5 kg.
