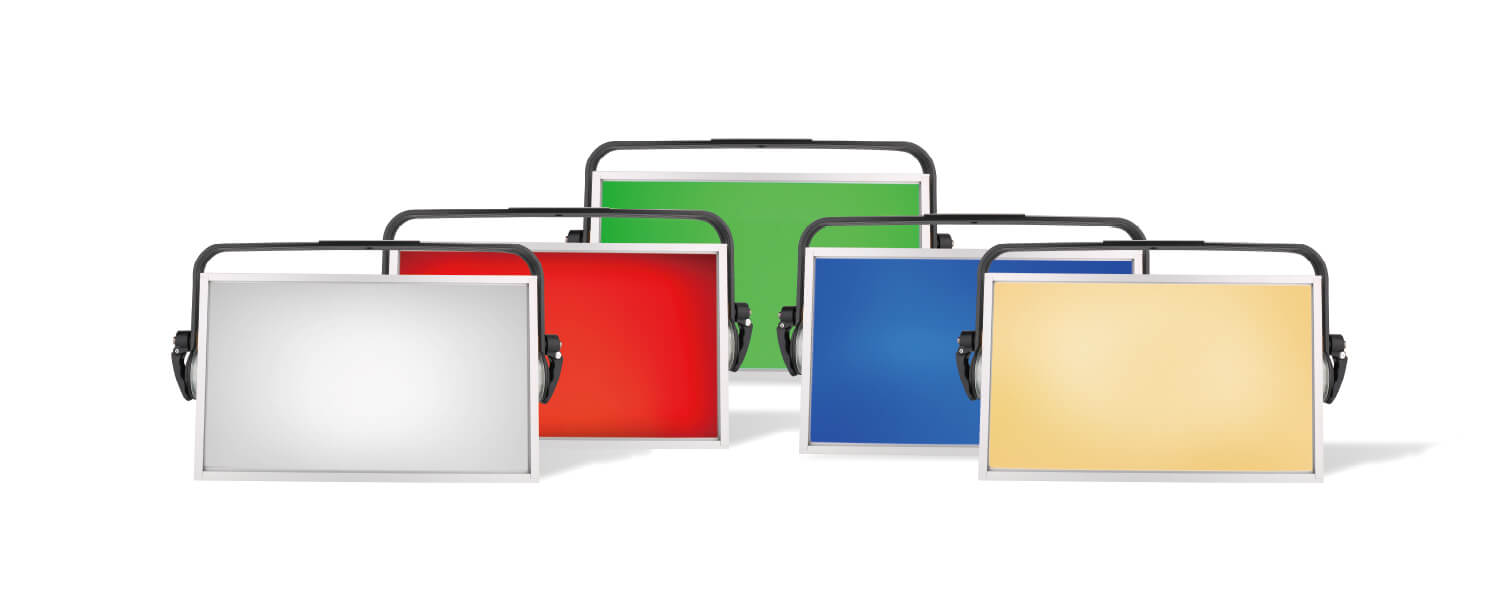

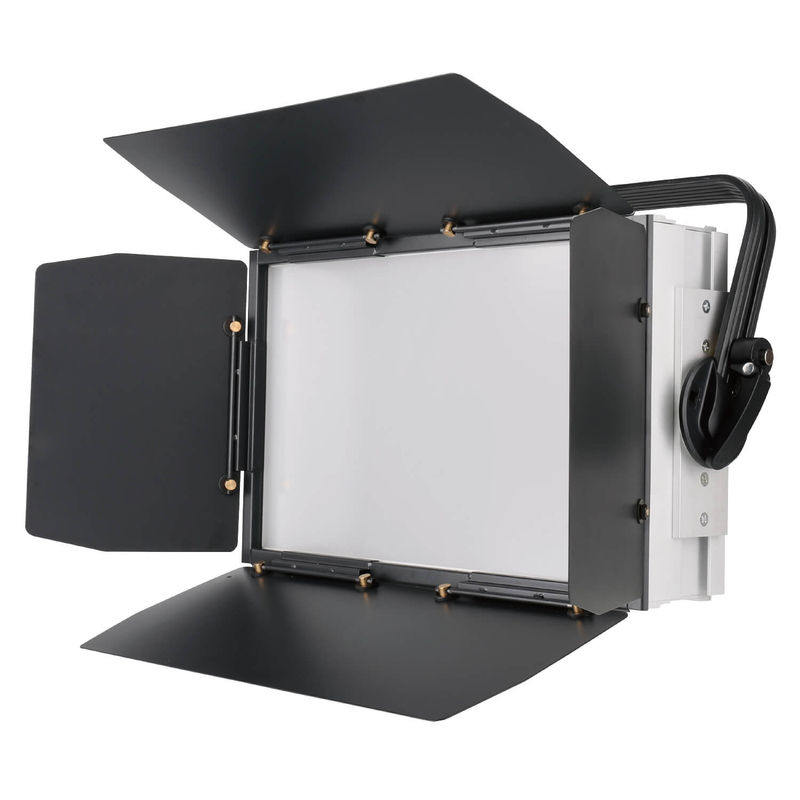

Joyfirst RGBW LED Studio Panel Light

Optical light source using 1200 pcs Osram LEDs.
The radiator system is made of high efficiency, low noise and special designed according to the structure and heat-sink characters of this product, which is lower than 20dB.
The light's constructional design is very unique, available connect multi units with each others, the front barndoor changeable as well as the frost filter.
The software of this light is designed by one of the Top engineer of the industry.
This light is of very nice beam effect, high eficiency, no shadow.
When multi units dimming light or tuning CCT synchronized, their CCT and CRI keep same.

Quantity:
  • JT-PG2026
  • JTL

1、 Voltage:AC100-240V/50-60Hz

2、P ower:320W

3、L amp Source:1200pcs OSRAM P5(2026)LEDs,240pcs red、240pcs green、240pcs blue、

480pcs warm white,unit power is 0.5W

4、Output Voltage:2700-10000K(280-310W),red(70W)、green(140W)、blue(140W)

5、lifetime:5-10W hours

6、Color temperature:2700-10000K(2700K±50、3200K±100、5600K±150)

7、CRI:CRI≥93,TLCI≥91

8、Color:RGBW can mixed all kinds of colors

9、Beam angle:105°

10、Lens:460X260mm

11、Output Luminous Flux:2700K(14502 Im), 3200K(14827 Im), 5600K(13328 Im),

10000k(12589 Im), red( 3095 Im), green(5748 Im), blue(1408 Im)

12、Control: DMX

13、DMX Channel:2 Channels,7 Channels

14、Control:Local or DMX

15、Dimmer: 16bits smoothing liner dimming, the strobe more than 20K

16、Cooling Fans: Customize the adjustable speed intelligent fan according to the product

characteristics, the fan speed (sound) can be based on the power of the product .Adjustment

and intelligent change, when the dimming value is in the range of 0-99, the fan does not rotate.

17、Power change,Color temperature tolerance scope <3%

18、Temperature change, color temperature tolerance scope <3%

19、t he product appearance structure: the leaf and the soft plate can be disassembled easily

20、 Working temperature:-25℃---40℃

17、 IP rate:IP20

18、P roduct dimension:with barn doors 59.5X18X36cm,without barn doors 59.5X14X34.5cm

19、P ackage size:65X26X42cm

20、N et weight:12.3Kg(fixture:10.5Kg、barn doors:1.8kg)

21、 Gross weight:13.7Kg

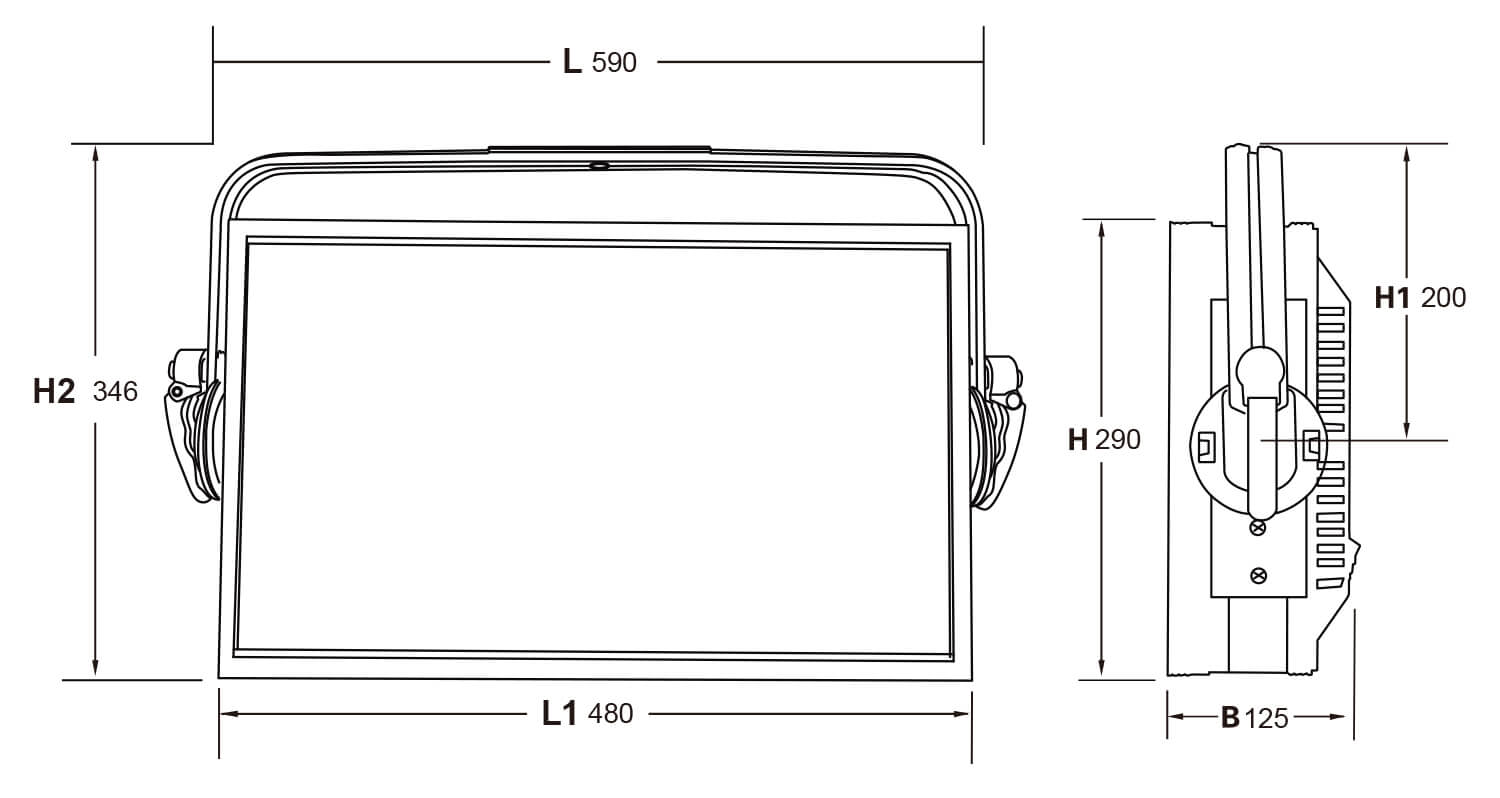

2026尺寸

RGBW

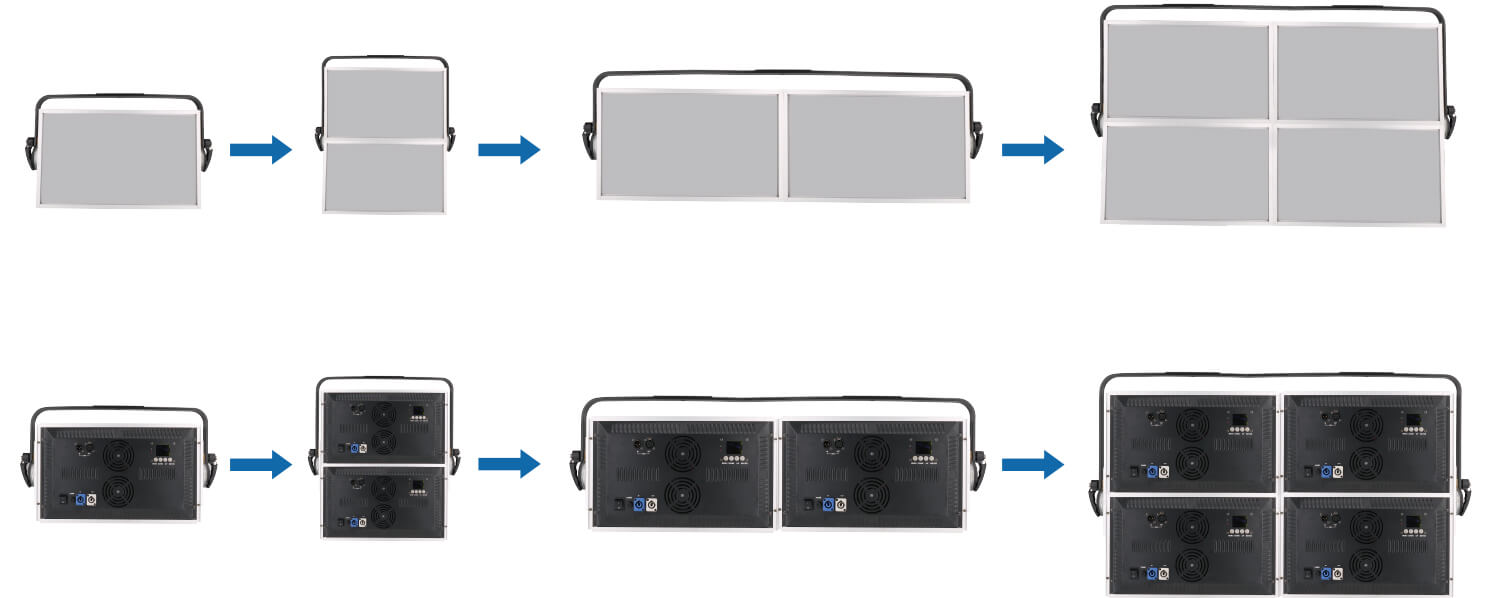

拼接
