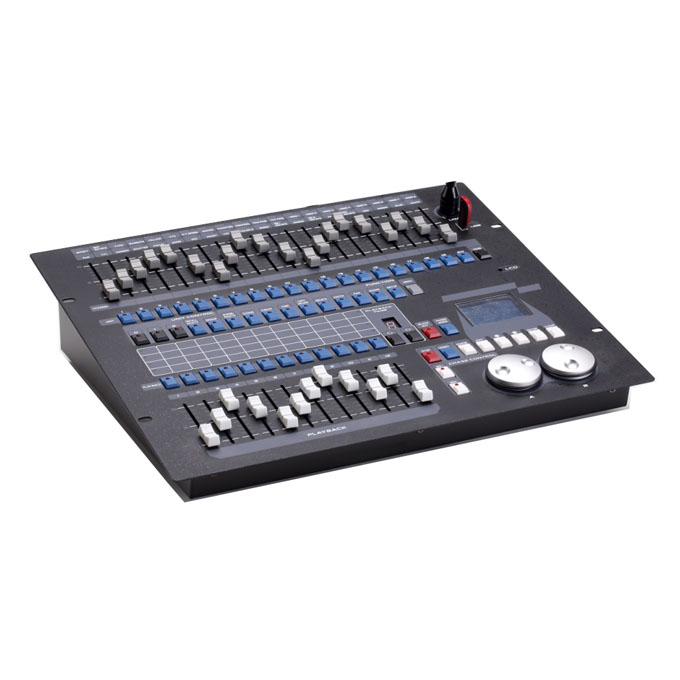

Stage Moving Head Lighting Console 1024 Dmx 512 Controller

◆ DMX512 / 1990 standard, up to 512 DMX channels, optically isolated signal output.
◆ maximum control 60 or 60 channels of computer lights dimming, use pearl light library.
◆ built-in graphics trajectory generator, there are 135 built-in graphics, user-friendly graphical track fixtures
Control, such as a circle, spiral, rainbow, chase and other effects. Graphics parameters (such as: amplitude, velocity, Interval, waves, direction) can be set independently.
◆ 150 one playback scenes, scenes for storing multi-step and single-step scene. Multi-step scenario can store up to 120 steps.
◆ LCD display with backlight, display in English
◆ Shutdown data retention.
◆ U-disk backup and upgrade.
◆ Professional gooseneck lights for indoor and outdoor performances. (Optional)
◆ Power Supply: AC 100 240V / 50-60Hz.
◆ Size: 485 x 420 x 105

Quantity:
  • 512A
  • AHLights

DMX512 channels: 1024
With the number of computers connected to the lamp: 80 groups
Fixtures re-connected with the address code: Support
Lamps horizontal and vertical exchange: Support
Lamps channel inverting output: Support
Lamps channel sliding mode switch: Support
Each scanner maximum available control channels: Channel 40 main channel +40 trim
Fixture Library: R20 pearl light library support
The number of scenes that can be saved: 600
The number of scenes that can run simultaneously: 20
The total number of steps in a multi-step scenario: 600
Scene time control: fade in, fade out, LTP sliding
Graphics can be stored for each scene: 5
Fader scenes and dimming: Support
Interlock Scene: Support
Point Control scenarios: support
Graphics Generator: can generate Dimmer, P / T, RGB, CMY, Color, Gobo, Iris, Focus Graphics
Graphics can be run at the same time the number: 20
Master Fader: Global, repeat, lighting
Now Black: Support
Dial to adjust the channel values: support
Fader adjust the channel values: support
Fader Dimmer: Support
U disk read: Support FAT32 format
