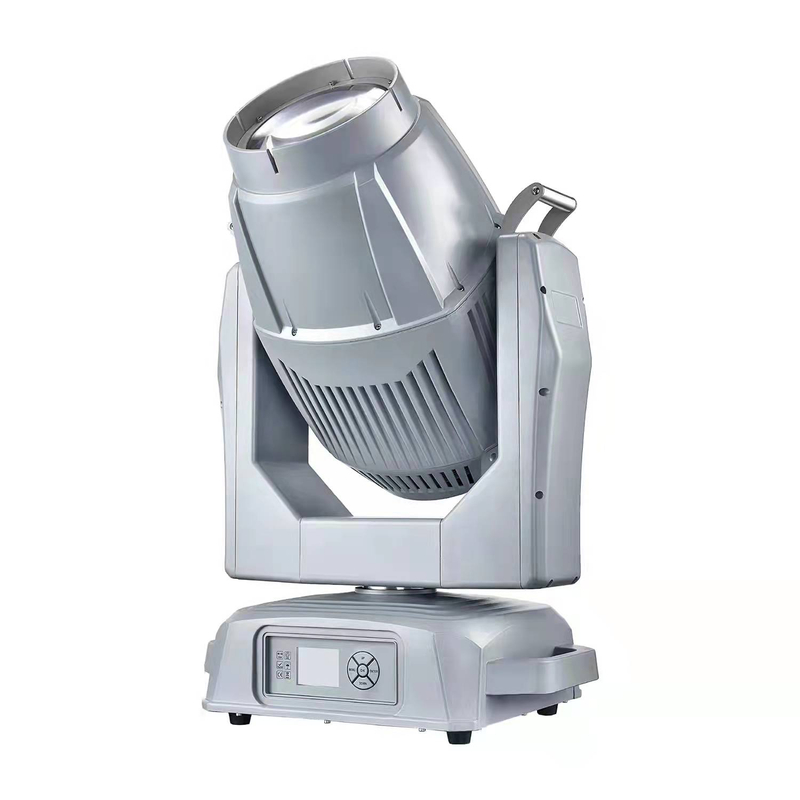

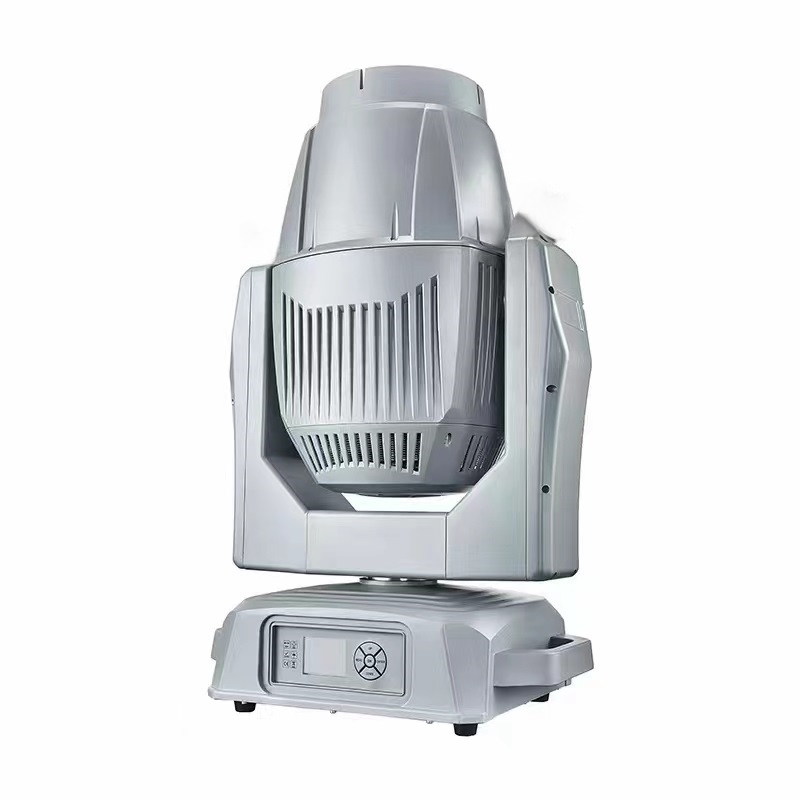

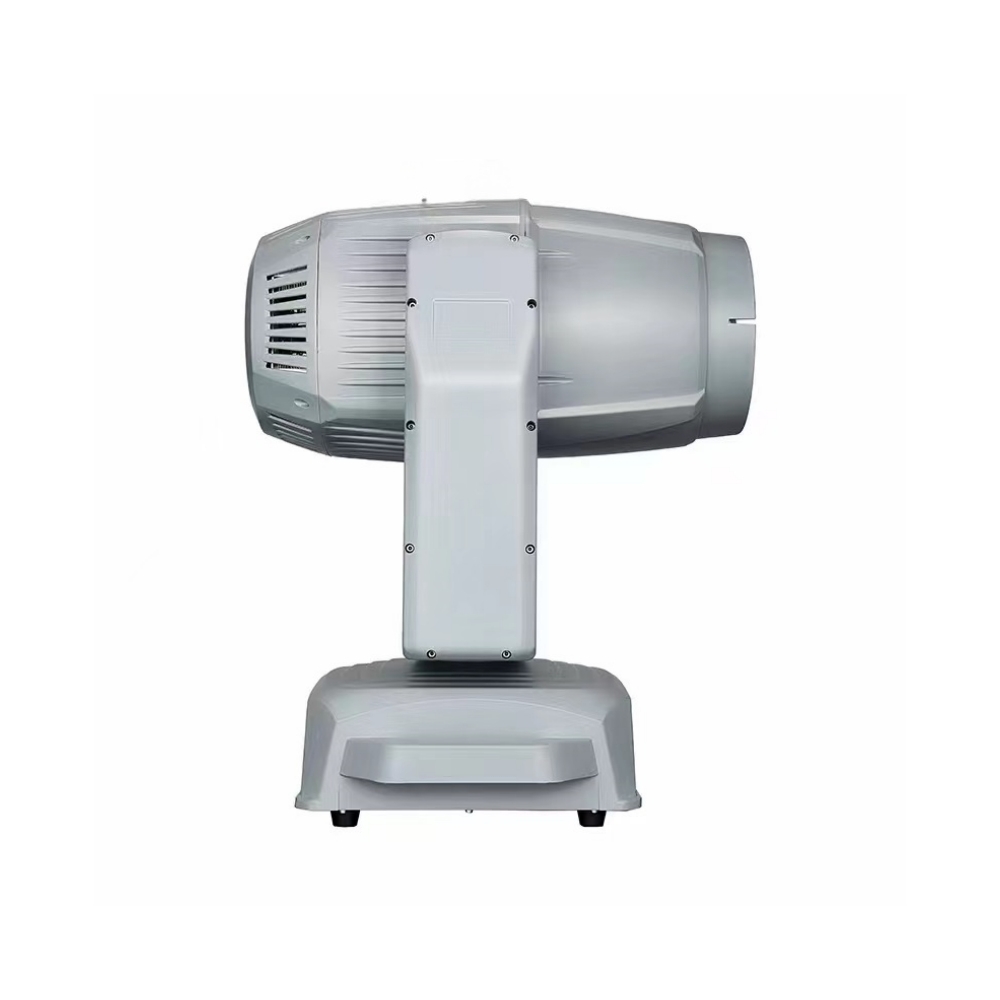

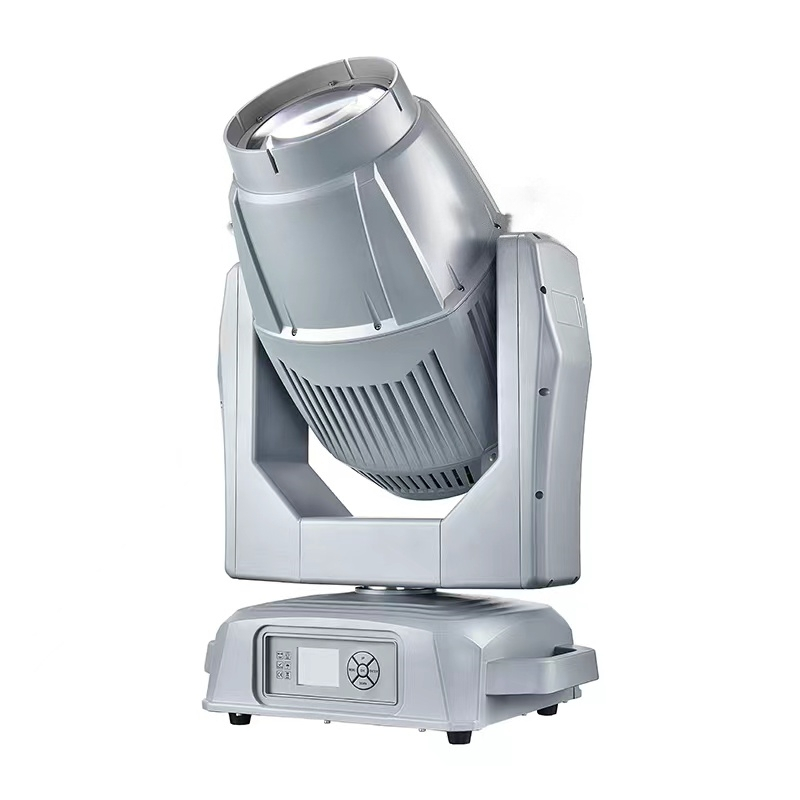

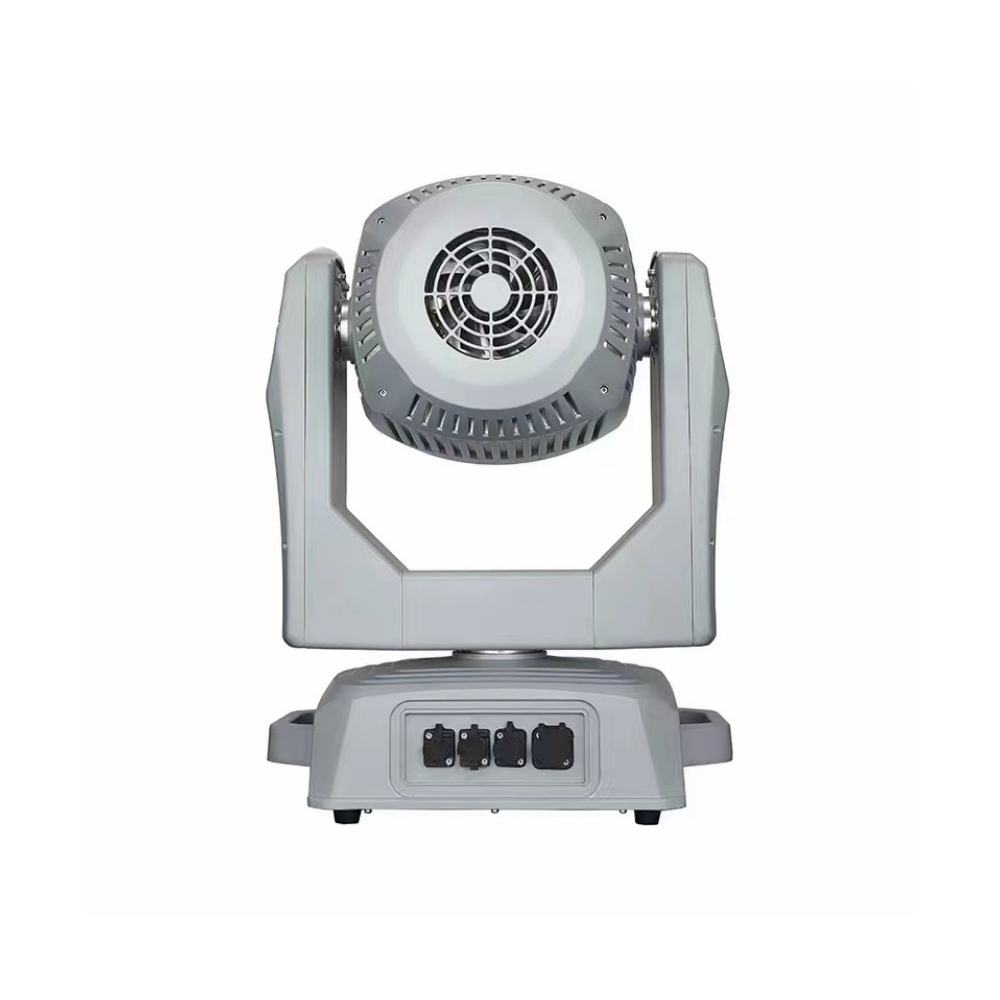

Waterproof Beam 20R 480W Moving Head Light IP65 Outdoor Lighting

Availability:
Quantity:
  • JT-R480F
  • Joyfirst

Lamp
OSRAM 480W
Voltage
AC110-240V/50-60Hz
Lamp Hours
2000hrs
Ballast
Electronic ballast
Max Power
680W
Power In/Out
Power Connector in/out
Data in/out
3/5-pin XLR
Beam Angle
2 °
IP rating
IP20
Lens diameter
185mm
Protocols
DMX512, RDM
Channel mode
16/20 DMX512 Channel
Pan/Tilt
540°/270°,8/16 bit resolution
Fixation
Tilt lock
Correction
Automatic Pan/Tilt position correction
Color wheel
13colors+open
Gobo Wheel
13 fixed gobos+open
Thickness
1mm
Prism
8 facet prism; 8+16 facet prism
Dimming
0-100% linear dimming
Strobe
0.5-14 t/s
Effects
frost, rainbow
