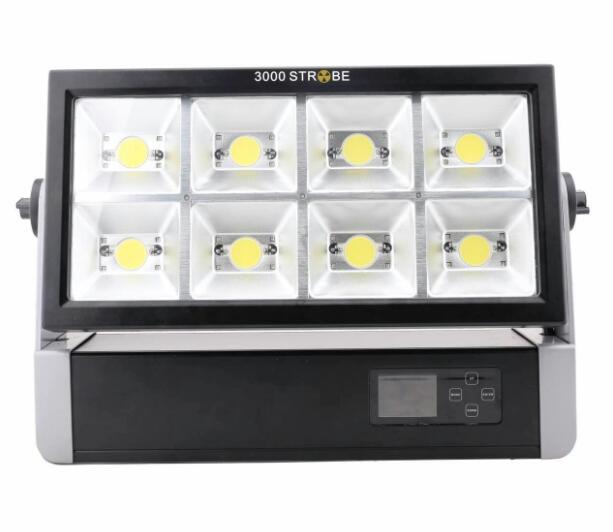

3000 Strobe LED
AHLights
| Power Supply: | AC 100-240V,50/60HZ | ||||||
| Power Consumption: | 450W@full power,800W@strobe | ||||||
| Light Source: | 8X100W White LEDs & 32X3W 3 in 1 LEDs | ||||||
| White LED temperature: | 6500K | ||||||
| Beam Angle: | 90° | ||||||
| Dimmer: | 0-100% | ||||||
| Strobe: | 1-30Hz | ||||||
| Strobe effect: | Puls Random,Ramp up Random,Ramp down Random,Random strobe,Strobe Break Effekt,5s….1s,Strobe 0-30Hz | ||||||
| Channel: | 2/4/10/26CH | ||||||
| Cooling syestem: | Fan cooling(Auto & high-speed) | ||||||
| DMX in/out: | 3 pin XLR socket | ||||||
| Power Connection: | Powercon IN/OUT | ||||||
| 4 kinds of control modes: | DMX512(2.4G wireless DMX control),WDMX,SOUND,Master/Slave | ||||||
| DMX function: | Dimmer,Strobe,Strobe program,Strobe speed adjustment,Sound,Grouding color Red dimmer,Grounding Macro color,Grounding color jump,Color fade,Rainbow,Grounding Auto program,Grounding Auto speed | ||||||
| Stand-alone mode: | Strobe,Grounding color step,Grounding color shade,Auto,Slave,Marco color,Static color setting,Auto Program | ||||||
| Housing: | Aluminium | ||||||
| Housing color: | Black | ||||||
| Display: | 2.4inches TFT display operation | ||||||
| Indoor operation temperature: | - 20° ~ +40° | ||||||
| IP rating: | IP40 | ||||||
| Packing Dimension: | 585x220x425mm (24*9*17 Inch) | ||||||
| Net Weight: | 12.7KGS (29 Lb) | ||||||
| Gross Weight: | 15.2KGS (34 Lb) | ||||||
| Channel details | |||||||
| Channel 1 | Dimmer | Channel 6 | Gound color Dimmer | ||||
| Channel 2 | Strobe functions | Channel 7 | Ground color Strobe | ||||
| Channel 3 | Programs | Channel 8 | Ground color Marco(overried RGB) | ||||
| Channel 4 | Speed | Channel 9 | Auto | ||||
| Channel 5 | Sound | Channel 10 | Speed | ||||
