Main applications • Deactivation of bacteria, viruses and other micro-organisms • Residential drinking water units • Fish pond water units • Stand alone air purifiers
Features Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp Special lamp glass filters out the 185 nm ozone-forming radiation
Benefits Slim system design Simple single-ended connection Large range of High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size Effective disinfection over the useful lifetime of the lamp Good environmental choice because of lowest amount of mercury

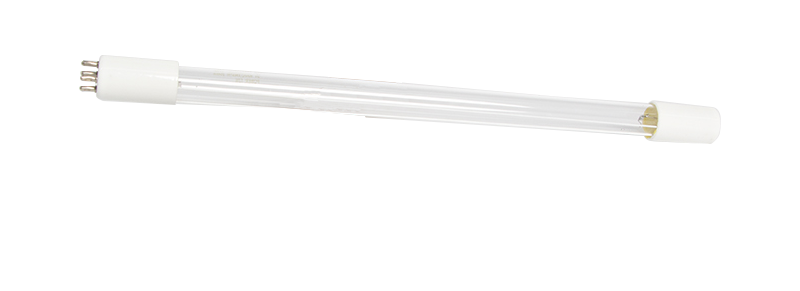

Single-ended Four-pin Germicidal Lamp
Code | Tube diameter (mm) | Length (mm) | Power (W) | Voltage (V) | Current (mA) | UV intensity under 1m (um/cm2) | Life (hrs) |
ZW4D15W-Z135 | 15 | 135 | 4 | 28 | 425 | 16 | 8000 |
ZW6D15W-Z212 | 15 | 212 | 6 | 32 | 425 | 22 | 8000 |
ZW11D15W-Z212 | 15 | 212 | 11 | 35 | 425 | 27 | 8000 |
ZW12D15W-Z287 | 15 | 287 | 12 | 37 | 425 | 30 | 8000 |
ZW24D15W-Z450 | 15 | 450 | 24 | 66 | 425 | 74 | 8000 |
ZW32D15W-Z645 | 15 | 645 | 32 | 89 | 425 | 102 | 8000 |
ZW80D15W-Z846 | 15 | 846 | 80 | 115 | 425 | 130 | 8000 |
ZW80D15W-Z1149 | 15 | 1149 | 80 | 122 | 425 | 245 | 8000 |
ZW150D15W-Z1149 | 15 | 1149 | 150 | 190 | 425 | 380 | 8000 |
Main applications • Deactivation of bacteria, viruses and other micro-organisms • Residential drinking water units • Fish pond water units • Stand alone air purifiers
Features Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp Special lamp glass filters out the 185 nm ozone-forming radiation
Benefits Slim system design Simple single-ended connection Large range of High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size Effective disinfection over the useful lifetime of the lamp Good environmental choice because of lowest amount of mercury
Single-ended Four-pin Germicidal Lamp
Code | Tube diameter (mm) | Length (mm) | Power (W) | Voltage (V) | Current (mA) | UV intensity under 1m (um/cm2) | Life (hrs) |
ZW4D15W-Z135 | 15 | 135 | 4 | 28 | 425 | 16 | 8000 |
ZW6D15W-Z212 | 15 | 212 | 6 | 32 | 425 | 22 | 8000 |
ZW11D15W-Z212 | 15 | 212 | 11 | 35 | 425 | 27 | 8000 |
ZW12D15W-Z287 | 15 | 287 | 12 | 37 | 425 | 30 | 8000 |
ZW24D15W-Z450 | 15 | 450 | 24 | 66 | 425 | 74 | 8000 |
ZW32D15W-Z645 | 15 | 645 | 32 | 89 | 425 | 102 | 8000 |
ZW80D15W-Z846 | 15 | 846 | 80 | 115 | 425 | 130 | 8000 |
ZW80D15W-Z1149 | 15 | 1149 | 80 | 122 | 425 | 245 | 8000 |
ZW150D15W-Z1149 | 15 | 1149 | 150 | 190 | 425 | 380 | 8000 |
